HELIENE PANELS IN STOCK
Heliene panels 72 cell $330.00
Heliene 60cell 320w bob$285.00
Heliene 60cell 320w bob$285.00

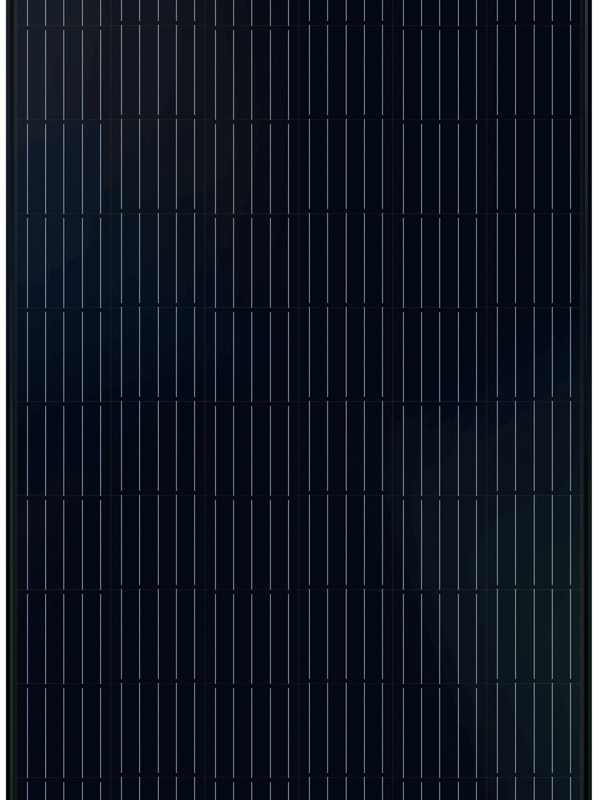

72 Cell Monocrystalline 405W
Manufactured Using International Quality System Standards: ISO9001
Bifacial Technology Enabling Additional Energy Harvest from Rear Side
1500V System Voltage Rating
No Compromise Guarantee
15 Year Workmanship Warranty
25 Year Linear Performance Guarantee
- 20.4%
Utilizes the latest high efficiency Monocrystalline PERC cells. - Stability & Looks
Rugged, double webbed frame design withstands wind, snow, and other mechanical stresses. Framed Glass–Backsheet aesthetic is ideal for high visibility installation. - Anti-Reflective
Premium solar glass with anti reflective coating delivers more energy throughout the day - High Reliability
Proven resistance to PID and reliable in high temperature and humidity environments.
Solar Cells
72 Full Cell, G1, 158.75mm, PERC Cells
Module Construction
Framed Glass–Backsheet
Dimensions (L x W x D)
1986x 1001 x 40 mm (78.2x 39.5x1.6 inch)
Weight
23.5 kg (51.81lbs)
Frame
Double Webbed 15-Micron Anodized Aluminum Alloy
Glass
3.2mm Low-Iron Content, High-Transmission, PV Solar Glass with Anti Reflective Coating
Junction Box
Three IP-68 Potted Junction Boxes
Output Cables
300mm (11.81 inch) Symmetrical Cables
Connectors
Multi-Contact (Staubli) MC4
Heliene 60cell 320w bob$285.00
Heliene 60cell 320w bob$285.00
Heliene 60cell 320w bob$285.00
60 Cell Monocrystalline 320W
Manufactured Using International Quality System Standards: ISO9001
No Compromise Guarantee
15 Year Workmanship Warranty
25 Year Linear Performance Guarantee
- 19.2%
Utilizes the latest high efficiency Monocrystalline PERC cells. - Stability & Looks
Rugged, double webbed frame design withstands wind, snow, and other mechanical stresses. Framed Glass–Backsheet aesthetic is ideal for high visibility installation. - Anti-Reflective
Premium solar glass with anti reflective coating delivers more energy throughout the day - High Reliability
Proven resistance to PID and reliable in high temperature and humidity environments.
Solar Cells
60 Monocrystalline cells (158.75 x 158.75 mm)
Module Construction
Framed Glass–Backsheet
Dimensions (L x W x D)
1666 x 1001 x 40 mm
(65.5 x 39.4 x 1.6 inch)
Weight
19 kg (41.9 lbs)
Frame
Double Webbed 15-Micron Anodized Aluminum Alloy
Glass
3.2mm Low-Iron Content, High-Transmission, PV Solar Glass with Anti Reflective Coating
Junction Box
IP68 Rated Junction Box with 3 Bypass Diodes
Output Cables
1.2-meter (47.24-inch) Symmetrical Cables
Connectors
Multi-Contact (Staubli) MC4
